S-Block sliding bearing 8 mm - 1 sheave, through bow
-
optimized rope guidance by specially formed cheek parts and trap of stainless steel for more security and stability
wobble riveting avoids sharp burrs
marking of the maximum rope Ø in the enhancing strap
cheek of glass fibre reinforced polyamide (UV-resistant) -
heavy-duty sliding bearing (identification= yellow point) especially suitable for standing loads
optimized rope guidance by specially formed cheek parts and trap of stainless steel for more security and stability
wobble riveting avoids sharp burrs
marking of the maximum rope Ø in the enhancing strap
cheek of glass fibre reinforced polyamide (UV-resistant)
Product description

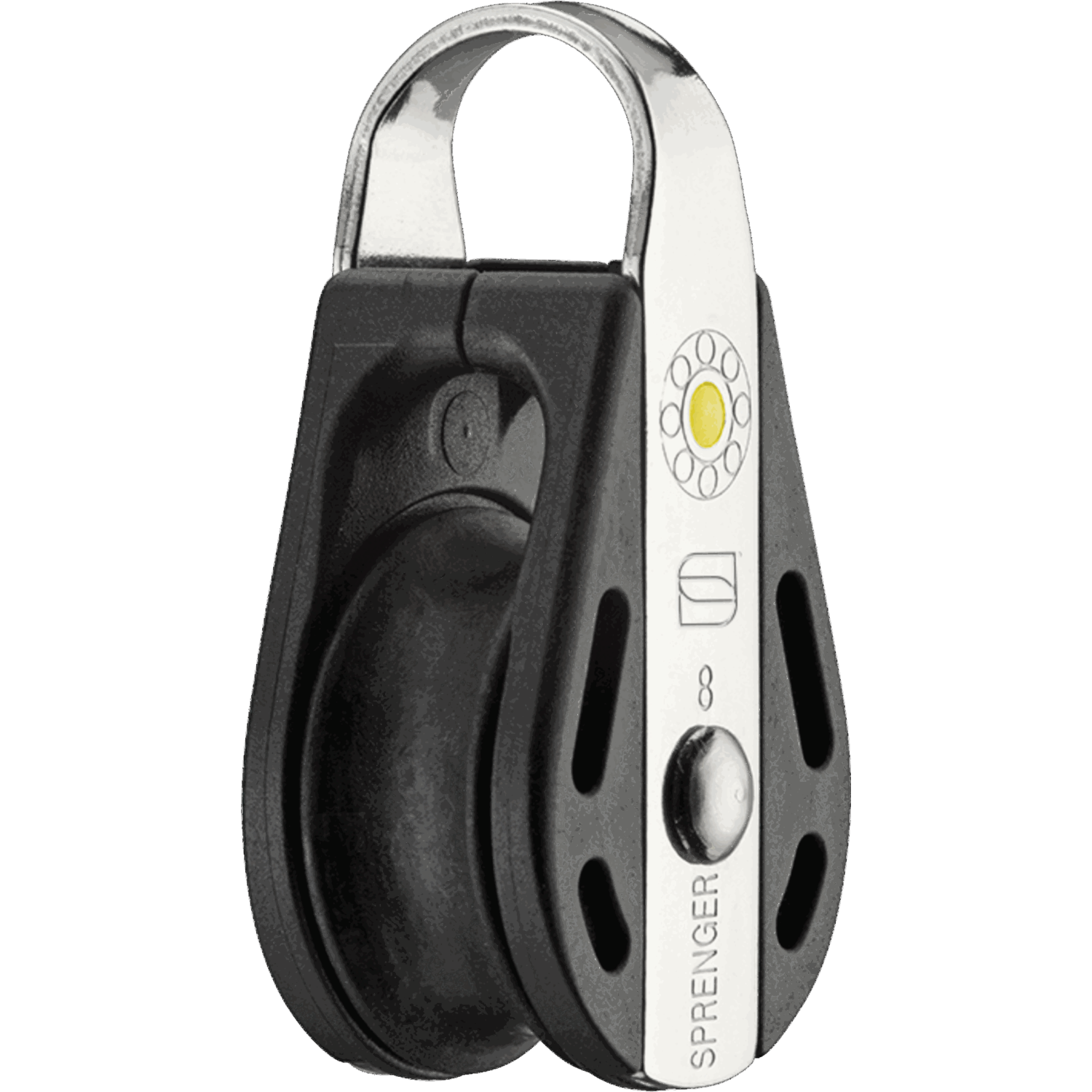

Versatile 8 mm block with continuous stainless steel bracket.
The sturdy stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance - a practical feature of all articles in the S-block series.
Further advantages at a glance:
optimal rope guidance due to curved side panels
side parts and pulley made of UV-resistant, glass-fibre reinforced plastic
dimensionally stable, continuous stainless steel strap for added stability and safety
indication of the type of bearing used and maximum rope thickness on the stainless steel tab
no sharp ridges on the rivet head thanks to tumble riveting
Made in Germany; - manufactured in our own factory in Iserlohn, North Rhine-Westphalia
constant quality checks - before, during and after production
excellent price/performance ratio
|Versatile 8 mm block with continuous stainless steel bracket.
The sturdy stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance - a practical feature of all articles in the S-block series.
Further advantages at a glance:
optimal rope guidance due to curved side panels
side parts and pulley made of UV-resistant, glass-fibre reinforced plastic
dimensionally stable, continuous stainless steel strap for added stability and safety
indication of the type of bearing used and maximum rope thickness on the stainless steel tab
no sharp ridges on the rivet head thanks to tumble riveting
Made in Germany; - manufactured in our own factory in Iserlohn, North Rhine-Westphalia
constant quality checks - before, during and after production
excellent price/performance ratio
The sturdy stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance - a practical feature of all articles in the S-block series.
Further advantages at a glance:
|Versatile 8 mm block with continuous stainless steel bracket.
The sturdy stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance - a practical feature of all articles in the S-block series.
Further advantages at a glance:
optimal rope guidance due to curved side panels
side parts and pulley made of UV-resistant, glass-fibre reinforced plastic
dimensionally stable, continuous stainless steel strap for added stability and safety
indication of the type of bearing used and maximum rope thickness on the stainless steel tab
no sharp ridges on the rivet head thanks to tumble riveting
Made in Germany; - manufactured in our own factory in Iserlohn, North Rhine-Westphalia
constant quality checks - before, during and after production
excellent price/performance ratio
SKU
3565010055
Working load
300 kg
Weight
31 g
Bearing
Sliding bearing
Cheek parts
Plastic
Amount of sheaves
1
Rope
8 mm Ø
360° rotatable
No
Material sheaves
Plastic
Sheave
27 x 11,5 mm
Feature
Through-bow
Self-Service-Card
Yes
Breaking load
600 kg
B1
18 mm
H1
52 mm
EAN
4022853191120
