Home All collections Blocks Ball bearing blocks S-Block ball bearing 8 mm - 2 sheaves, adjustment set
S-Block Kugellager 8 mm - 2 Rollen, Arretierset
S-Block Kugellager 8 mm - 2 Rollen, Arretierset
S-Block Kugellager 8 mm - 2 Rollen, Arretierset
S-Block Kugellager 8 mm - 2 Rollen, Arretierset
S-Block Kugellager 8 mm - 2 Rollen, Arretierset

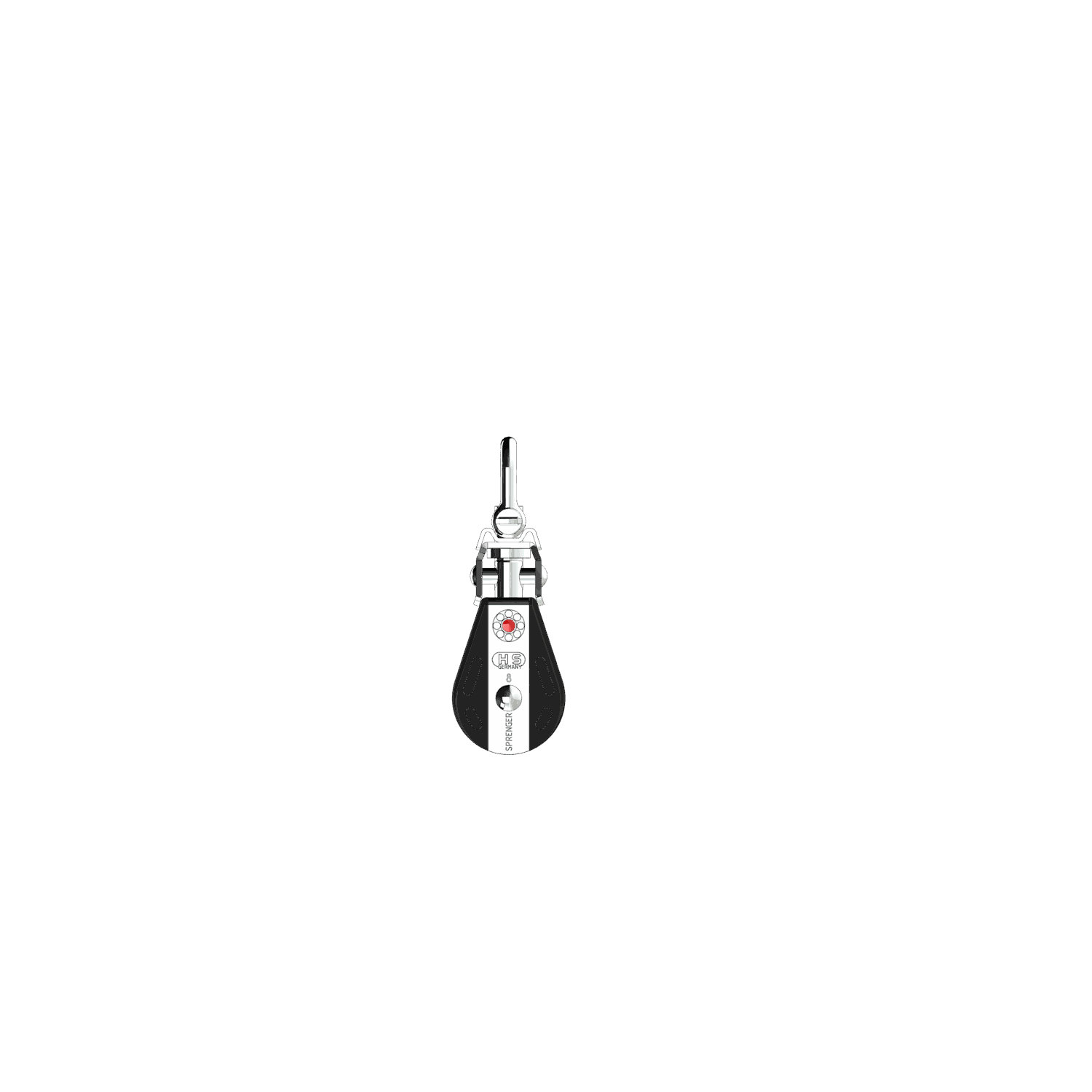

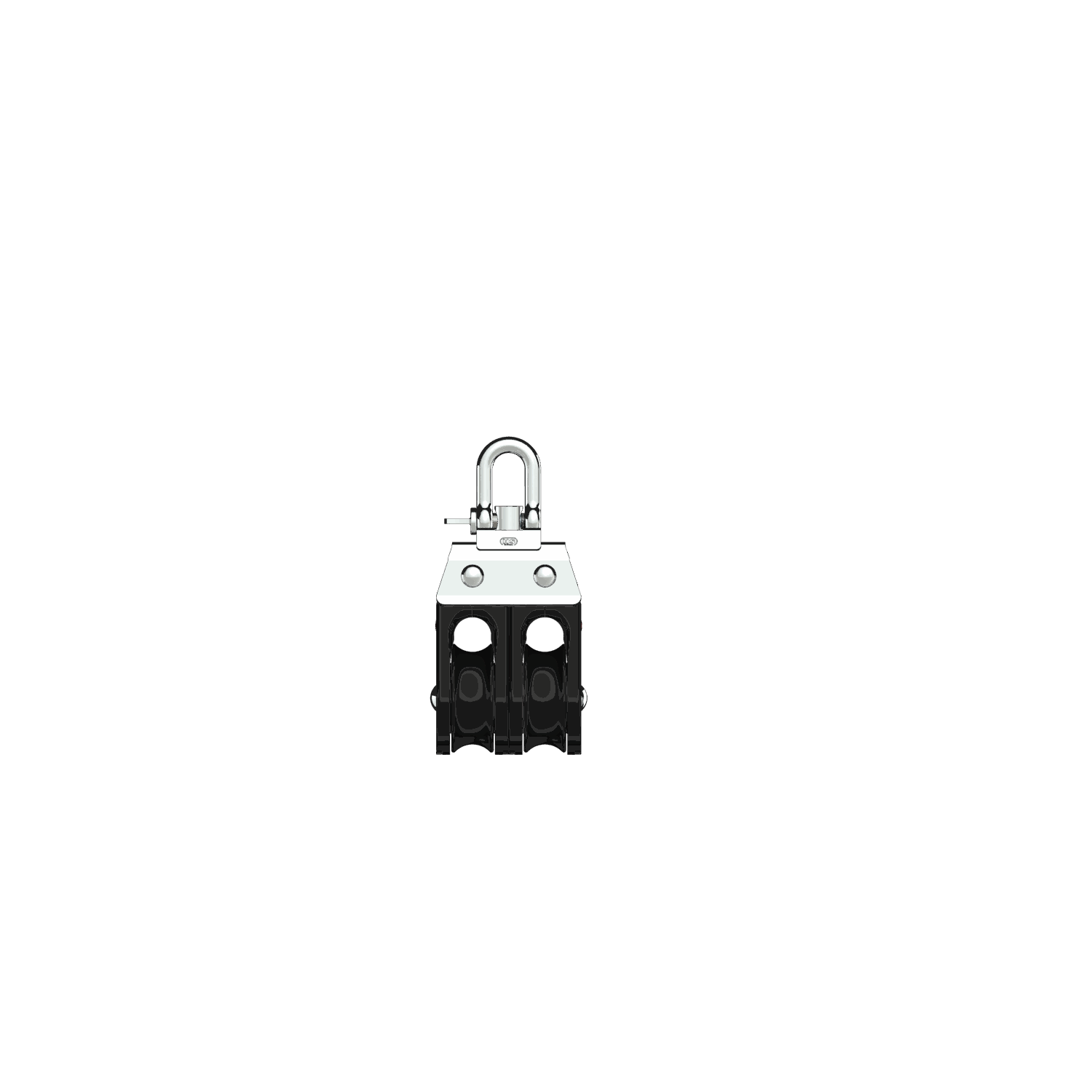

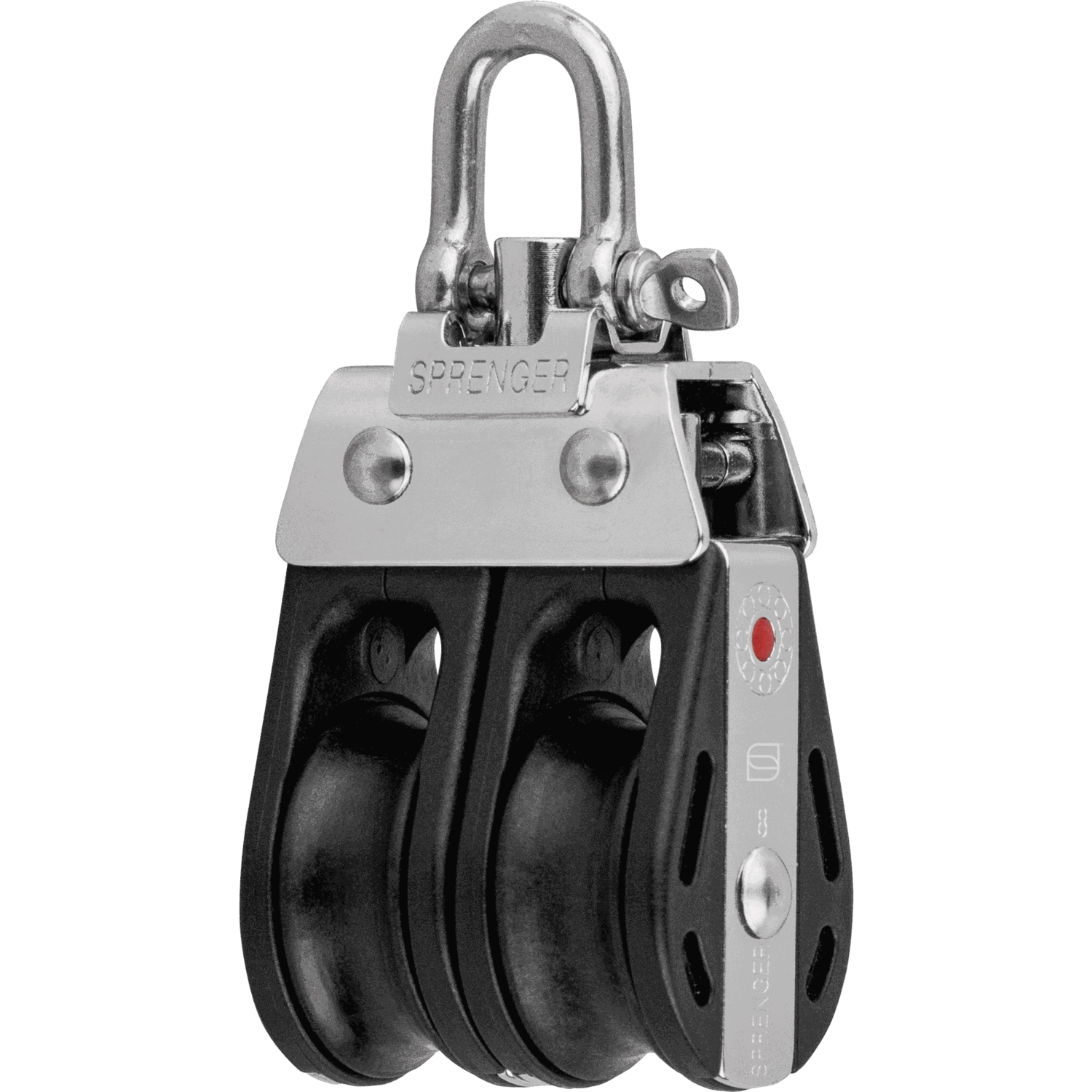

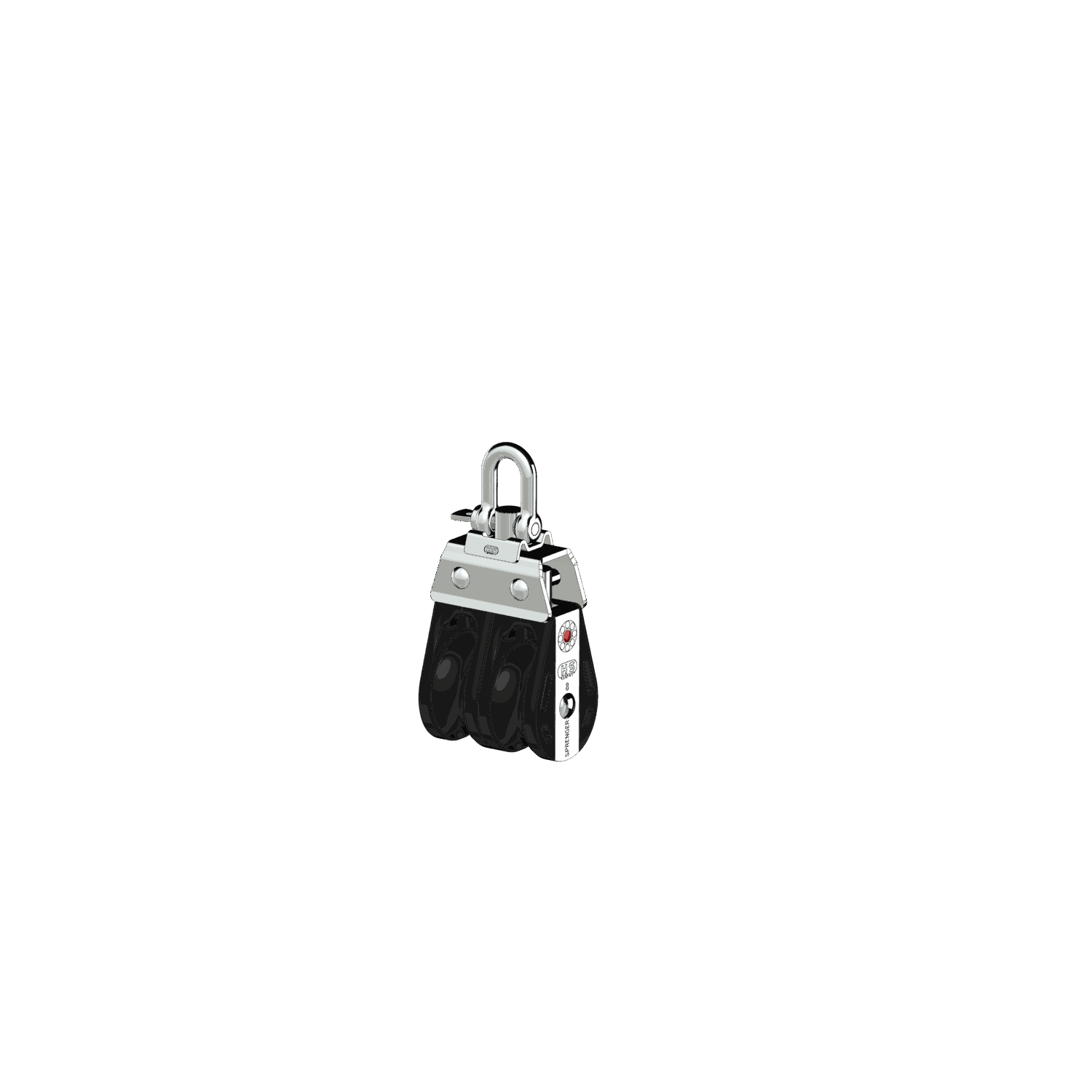

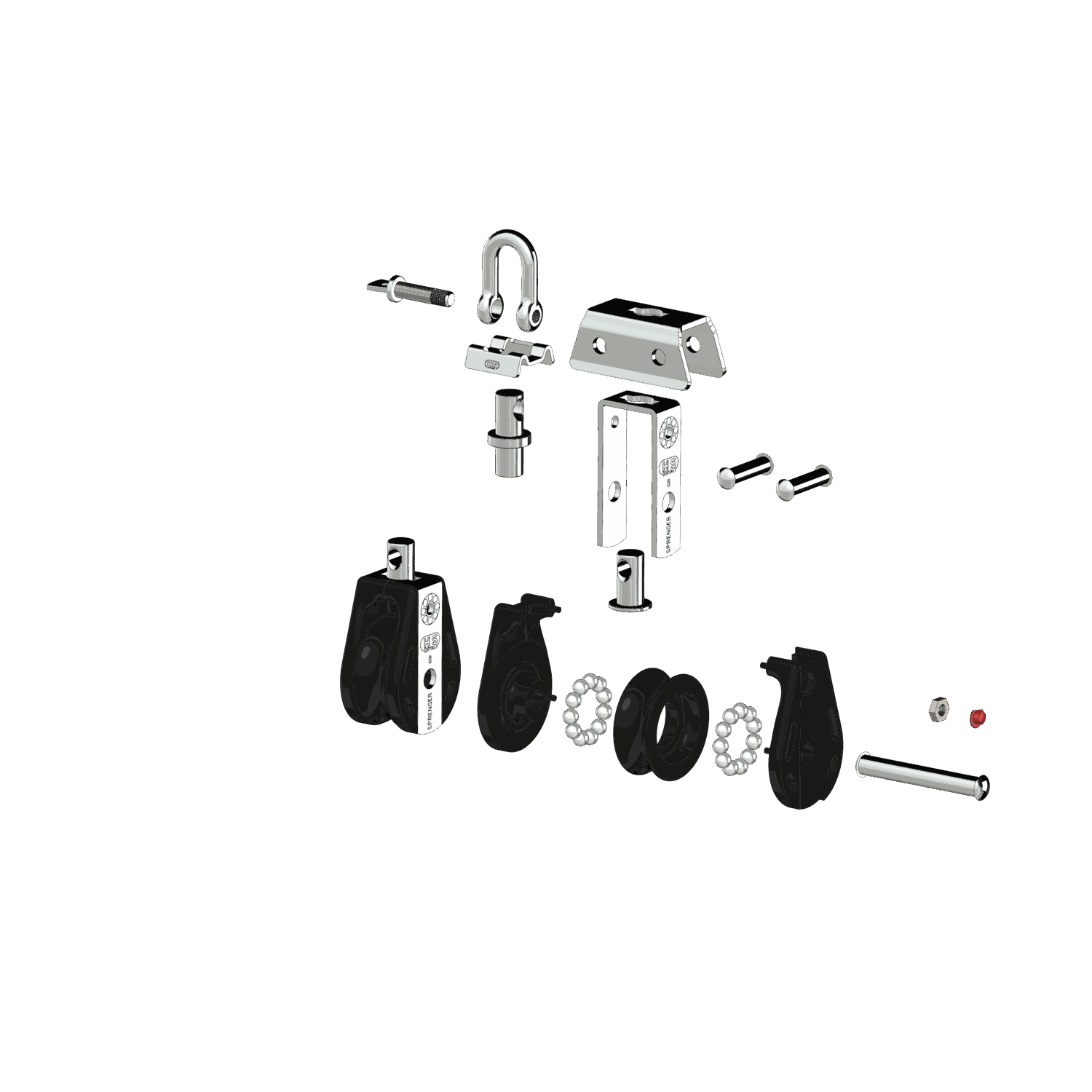

S-Block ball bearing 8 mm - 2 sheaves, adjustment set

SKU: 3565170000

  • optimized rope guidance by specially formed cheek parts and trap of stainless steel for more security and stability
    wobble riveting avoids sharp burrs
    marking of the maximum rope Ø in the enhancing strap
    cheek of glass fibre reinforced polyamide (UV-resistant)
    with removable becket

  • smooth running plastic ball bearing (red point = ball bearing)especially suitable for slightly veering
    optimized rope guidance by specially formed cheek parts and continuous strap of stainless steel for more security and stability
    wobble riveting avoids sharp burrs
    marking of the maximum rope Ø in the enhancing strap
    cheek of glass fibre reinforced polyamide (UV-resistant)
    with removable becket

Product description

Versatile 8 mm block with swivel.


The sturdy stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance - a practical feature of all articles in the S-block series.


Further advantages at a glance:



  • optimal rope guidance due to curved side panels

  • side parts and pulleys made of UV-resistant, glass-fibre reinforced plastic

  • dimensionally stable, continuous stainless steel strap for added stability and safety

  • indication of the type of bearing used and maximum rope thickness on the stainless steel tab

  • no sharp ridges on the rivet head thanks to tumble riveting

  • Made in Germany; - manufactured in our own factory in Iserlohn, North Rhine-Westphalia

  • constant quality checks - before, during and after production

  • excellent price/performance ratio

    • |Versatile 8 mm block with swivel.
    The sturdy stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance - a practical feature of all articles in the S-block series.
    Further advantages at a glance:

    optimal rope guidance due to curved side panels
    side parts and pulleys made of UV-resistant, glass-fibre reinforced plastic
    dimensionally stable, continuous stainless steel strap for added stability and safety
    indication of the type of bearing used and maximum rope thickness on the stainless steel tab
    no sharp ridges on the rivet head thanks to tumble riveting
    Made in Germany; - manufactured in our own factory in Iserlohn, North Rhine-Westphalia
    constant quality checks - before, during and after production
    excellent price/performance ratio
    SKU
    3565170000
    Working load
    150 kg
    Weight
    84 g
    Bearing
    Plastic ball bearing
    Cheek parts
    Plastic
    Amount of sheaves
    2
    Rope
    8 mm Ø
    360° rotatable
    Yes
    Material sheaves
    Plastic
    Sheave
    27 x 11,5 mm
    Feature
    Adjustment set
    Self-Service-Card
    Yes
    Breaking load
    600 kg
    B1
    36 mm
    H1
    79 mm
    EAN
    4022853192011
