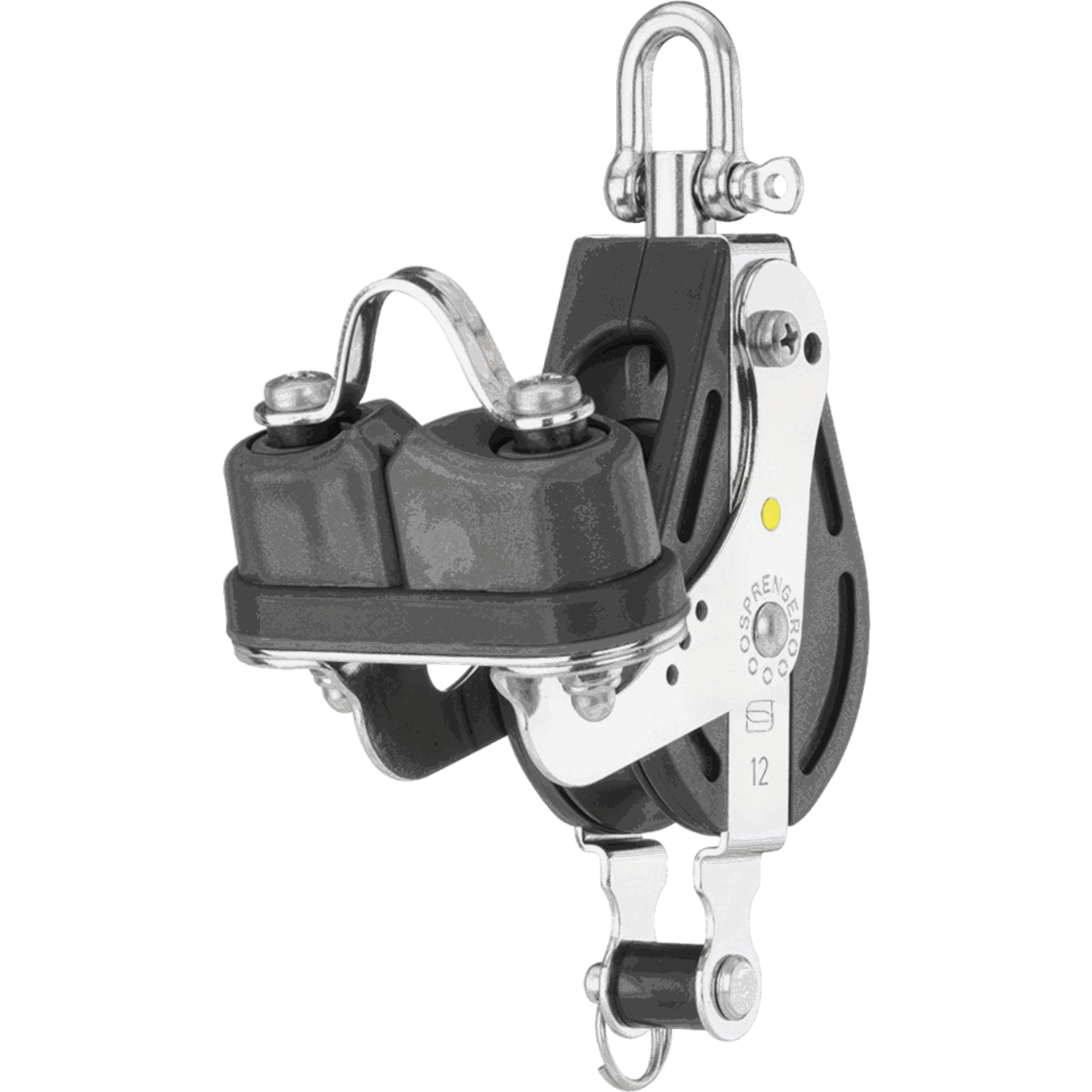

S-Block mainsheet sliding bearing 12 mm - 1 sheave, swivel, becket, cam cleat

SKU: 3567029200

  • optimized rope guidance by specially formed cheek parts and trap of stainless steel for more security and stability
    wobble riveting avoids sharp burrs
    marking of the maximum rope Ø in the enhancing strap
    cheek of glass fibre reinforced polyamide (UV-resistant)
    with removable becket

  • heavy-duty sliding bearing (identification= yellow point) especially suitable for standing loads
    optimized rope guidance by specially formed cheek parts and trap of stainless steel for more security and stability
    wobble riveting avoids sharp burrs
    marking of the maximum rope Ø in the enhancing strap
    cheek of glass fibre reinforced polyamide (UV-resistant)
    with removable becket

Product description

Versatile mainsheet block for 12 mm rope. The bolt with a split ring can be removed if necessary.
The sturdy stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance - a practical feature of all articles in the S-block series.
Further advantages at a glance:

optimal rope guidance due to curved side panels
side parts and pulley made of UV-resistant, glass-fibre reinforced plastic
dimensionally stable, continuous stainless steel strap for added stability and safety
indication of the type of bearing used and maximum rope thickness on the stainless steel tab
no sharp ridges on the rivet head thanks to tumble riveting
Made in Germany; - manufactured in our own factory in Iserlohn, North Rhine-Westphalia
constant quality checks - before, during and after production
excellent price/performance ratio
SKU
3567029200
Weight
294 g
Bearing
Plastic plain bearing
Cheek parts
Plastic
Amount of sheaves
1
Rope
12 mm Ø
360° rotatable
Yes
Material sheaves
Plastic
Sheave
57 x 16,2 mm
Feature
Becket (removable), Cam cleat, Swivel
Breaking load
1.200 kg
B1
26 mm
H1
139 mm
EAN
4022853205872
Self-Service-Card
Yes
B2
69 mm
Working load
460 kg
