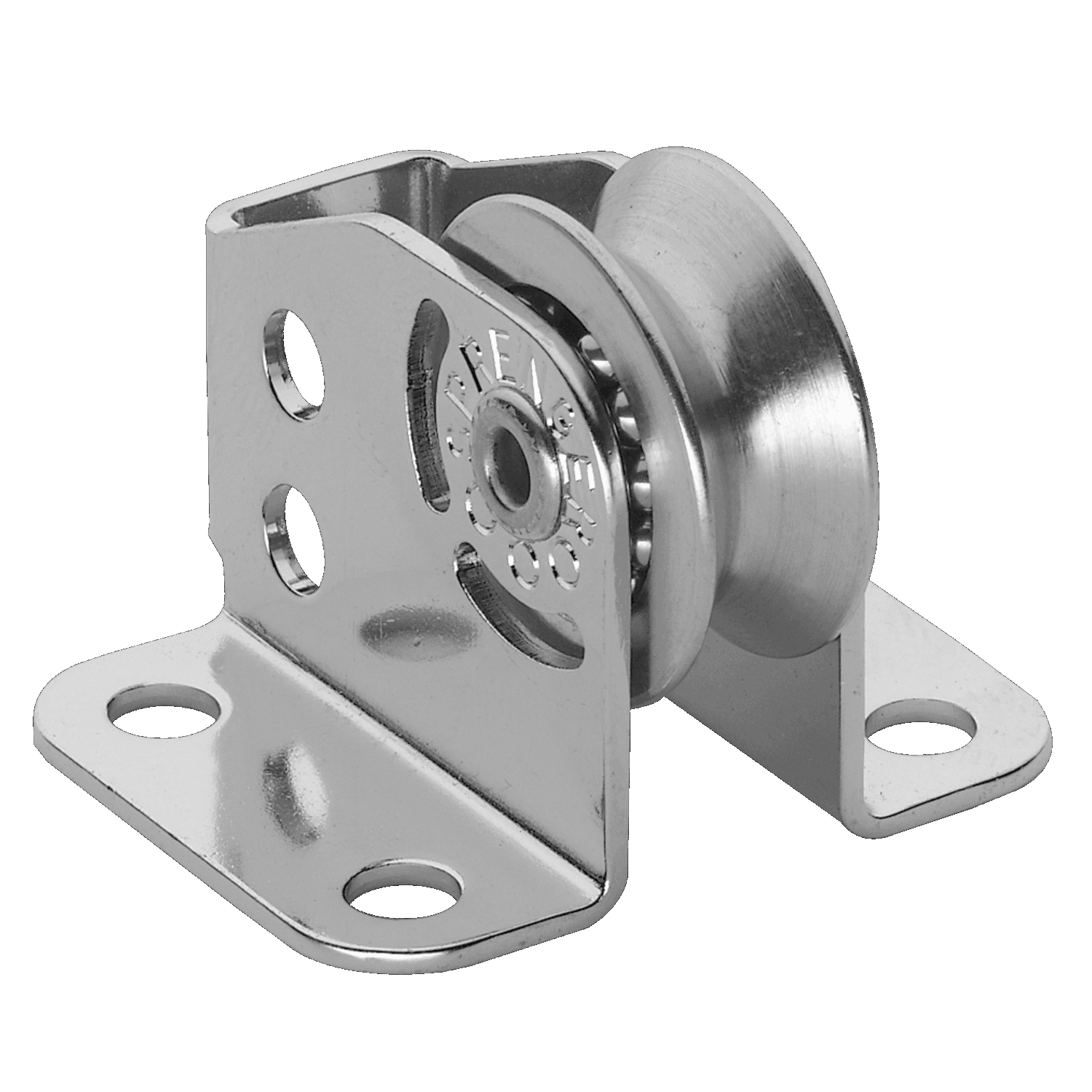

Micro XS upright block for wire ball bearing 4 mm - 1 sheave

SKU: 3533165055

  • smooth-running ball bearing, bearing body and balls made of stainless steel

  • wobble riveting avoids sharp burrs at the rivet head

  • cheek parts made of stainless steel and sheaves 19 x 8,3 mm of high quality UV-resistant plastic

  • very low weight and extremely small and lightweight blocks of compact shape

  • Many versions and fields of application but especially suitable for kicking strap, jigger or trimming lines

  • excellent price/performance ratio|smooth-running ball bearing, bearing body and balls made of stainless steel

  • wobble riveting avoids sharp burrs at the rivet head

  • cheek parts and sheaves 19 x 8.3 mm stainless steel

  • low weight and extremely small and lightweight blocks of compact shape

  • Many versions and fields of application and especially suitable for kicking strap, jigger, trimming lines but also suitable for wire and Dyneema

  • excellent price/performance ratio

Product description

Small and versatile Micro XS upright block for 4 mm wire or rope with a stainless steel housing and a stainless steel pulley. Mounting on board is particularly easy thanks to pre-drilled holes.


Particularly suitable for boom vang, stretchers and trim lines.



  • Further advantages at a glance:

  • no sharp ridges on the rivet head thanks to tumble riveting

  • »Made in Germany« - manufactured in our own factory in Iserlohn, North Rhine-Westphalia

  • constant quality checks - before, during and after production

  • excellent price/performance ratio

SKU
3533165055
Weight
28 g
Bearing
Stainless steel ball bearing
Cheek parts
stainless steel
Amount of sheaves
1
Sheave
19 x 8.3 mm
Feature
Hollow axles
Breaking load
450 kg
H1
26 mm
EAN
4022853112033
Material sheaves
Stainless steel
Self-Service-Card
Yes
Working load
112 kg
Type of blocks
Upright block
max. Wire
4 mm Ø
LA1
17 mm
LA2
24 mm
Ø
4 mm
