Home All collections Blocks Ball bearing blocks 8 mm ball bearing blocks S-Block ball bearing 8 mm - 3 sheaves,adjustment set, becket
S-Block Kugellager 8 mm - 3 Rollen, Arretierset, Hundsfott
S-Block Kugellager 8 mm - 3 Rollen, Arretierset, Hundsfott
S-Block Kugellager 8 mm - 3 Rollen, Arretierset, Hundsfott
S-Block Kugellager 8 mm - 3 Rollen, Arretierset, Hundsfott
S-Block Kugellager 8 mm - 3 Rollen, Arretierset, Hundsfott

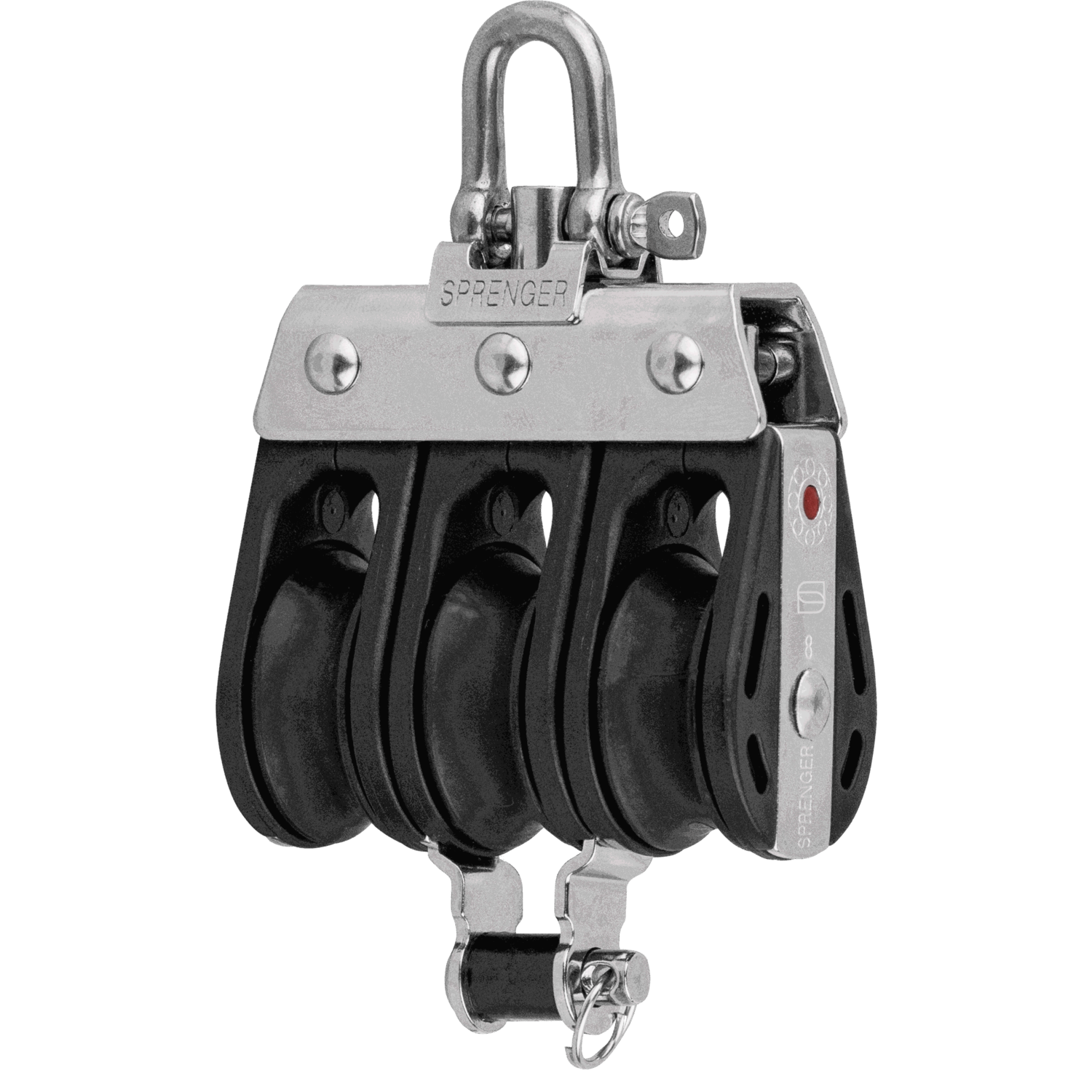

S-Block ball bearing 8 mm - 3 sheaves,adjustment set, becket

SKU: 3565570000

  • optimized rope guidance by specially formed cheek parts and trap of stainless steel for more security and stability
    wobble riveting avoids sharp burrs
    marking of the maximum rope Ø in the enhancing strap
    cheek of glass fibre reinforced polyamide (UV-resistant)
    with removable becket

  • smooth running plastic ball bearing (red point = ball bearing)especially suitable for slightly veering
    optimized rope guidance by specially formed cheek parts and continuous strap of stainless steel for more security and stability
    wobble riveting avoids sharp burrs
    marking of the maximum rope Ø in the enhancing strap
    cheek of glass fibre reinforced polyamide (UV-resistant)
    with removable becket

Product description

Versatile 8 mm block with swivel and becket.
The sturdy stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance - a practical feature of all articles in the S-block series.
Further advantages at a glance:

optimal rope guidance due to curved side panels
side parts and pulleys made of UV-resistant, glass-fibre reinforced plastic
dimensionally stable, continuous stainless steel strap for added stability and safety
indication of the type of bearing used and maximum rope thickness on the stainless steel tab
no sharp ridges on the rivet head thanks to tumble riveting
Made in Germany; - manufactured in our own factory in Iserlohn, North Rhine-Westphalia
constant quality checks - before, during and after production
excellent price/performance ratio
SKU
3565570000
Working load
150 kg
Weight
125 g
Bearing
Plastic ball bearing
Cheek parts
Plastic
Amount of sheaves
3
Rope
8 mm Ø
360° rotatable
Yes
Material sheaves
Plastic
Sheave
27 x 11,5 mm
Feature
Adjustment set, Becket (removable)
Self-Service-Card
Yes
Breaking load
600 kg
B1
54 mm
H1
94 mm
EAN
4022853192103
