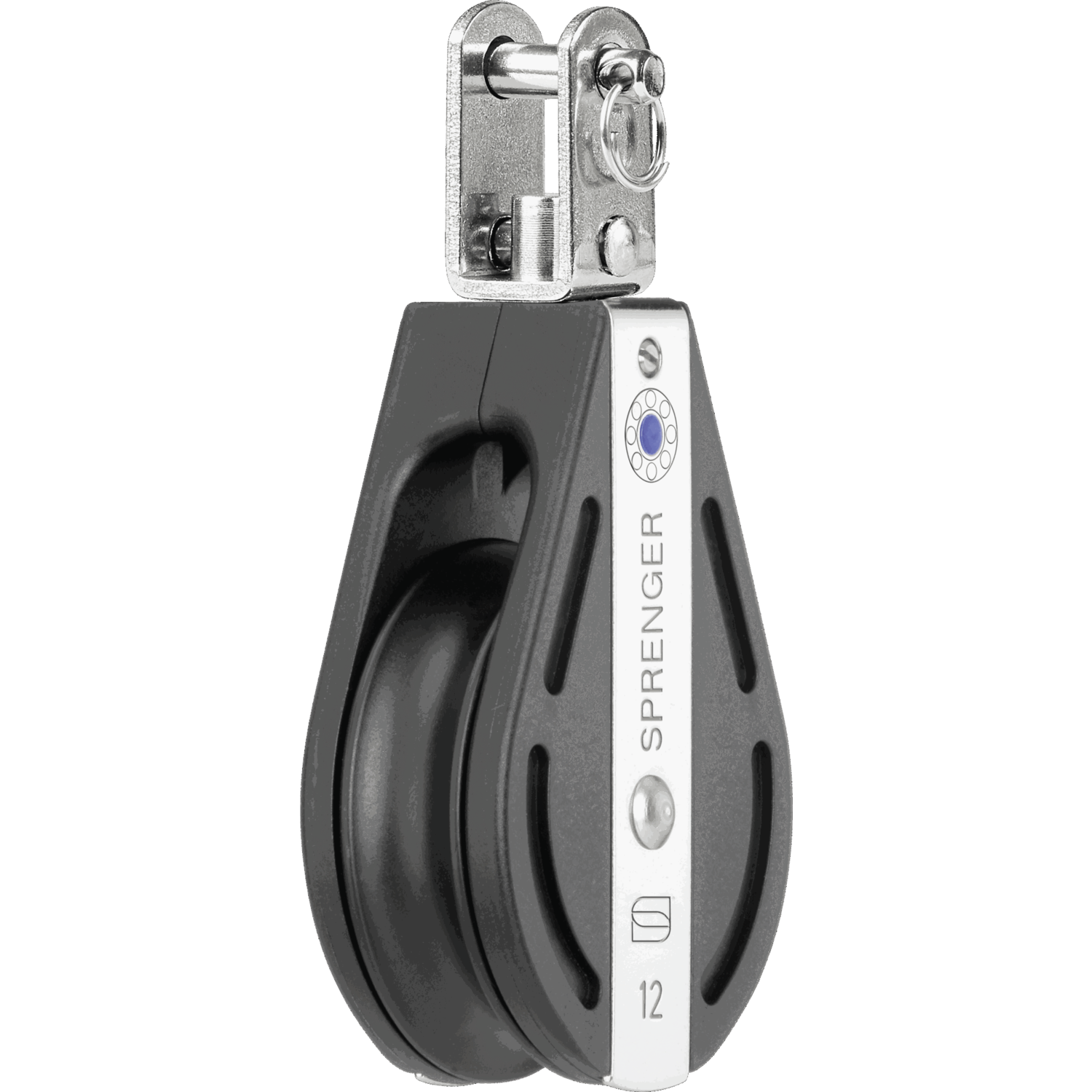

S-Block needle bearing 12 mm - 1 sheave, u-swivel

SKU: 3565045255

  • low-friction and easy running needle bearing (blue point = needle bearing) (stainless steel) enables a very high working load: min. 300 kg

  • optimized rope guidance by specially formed cheek parts and continuous strap of stainless steel for more security and stability

  • wobble riveting avoids sharp burrs

  • marking of the maximum rope Ø in the enhancing strap

  • cheek of glass fibre reinforced polyamide (UV-resistant)

  • with removable becket

Product description

Versatile 12 mm block with u-shaped swivel.


The sturdy stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance - a practical feature of all articles in the S-block series.


Further advantages at a glance:



  • optimal rope guidance due to curved side panels

  • side parts and pulley made of UV-resistant, glass-fibre reinforced plastic

  • dimensionally stable, continuous stainless steel strap for added stability and safety

  • indication of the type of bearing used and maximum rope thickness on the stainless steel tab

  • no sharp ridges on the rivet head thanks to tumble riveting

  • »Made in Germany« - manufactured in our own factory in Iserlohn, North Rhine-Westphalia

  • constant quality checks - before, during and after production

  • excellent price/performance ratio

SKU
3565045255
Working load
460 kg
Weight
159 g
Bearing
Stainless steel needle bearing
EAN
4022853222282
Amount of sheaves
1
Rope
12 mm Ø
Sheave
57 x 16.2 mm
Breaking load
1,200 kg
Material sheaves
Plastic
360° rotatable
Yes
Feature
U-swivel (lockable)
Self-Service-Card
Yes

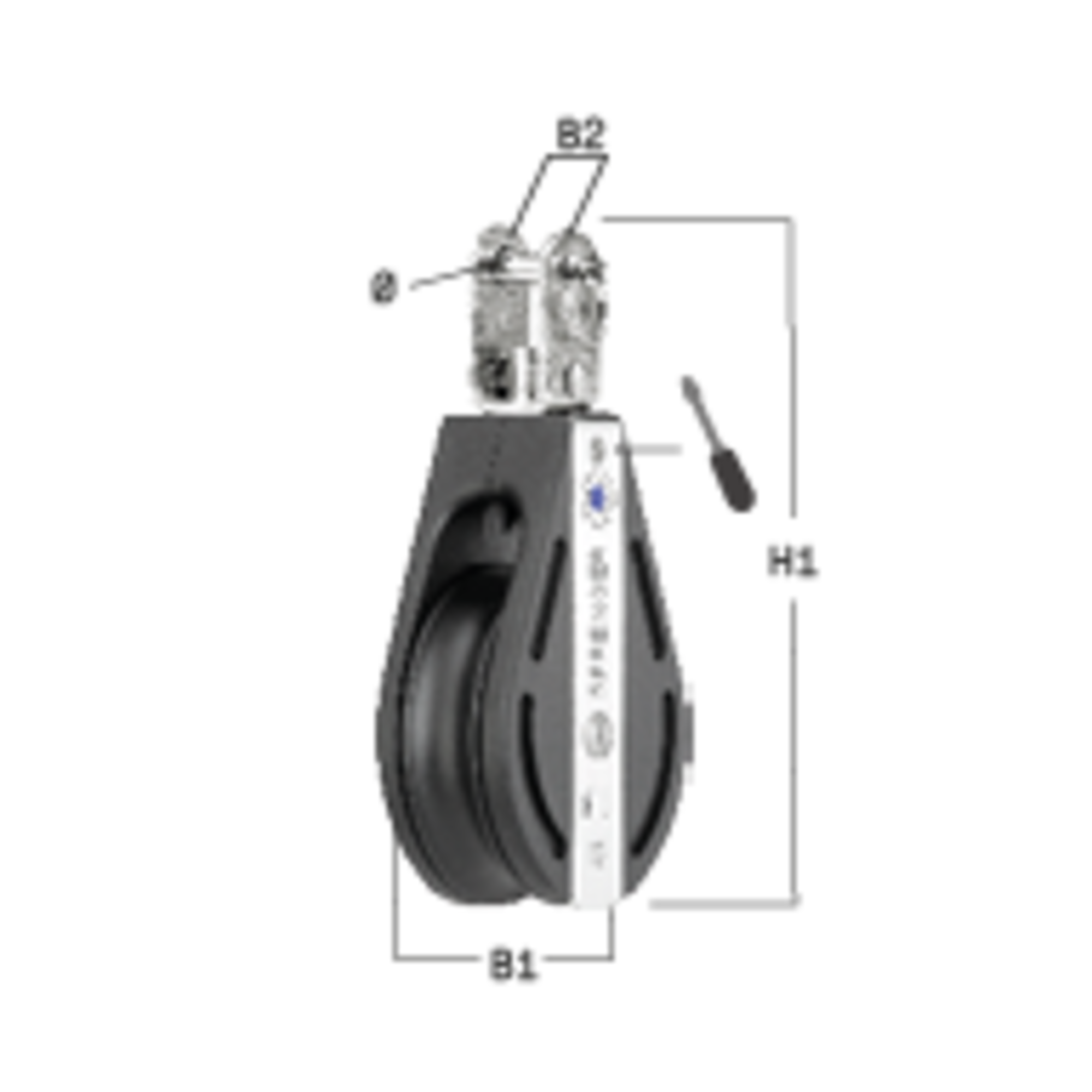

B1
26 mm
B2
14 mm
H1
114 mm
Ø
6 mm
