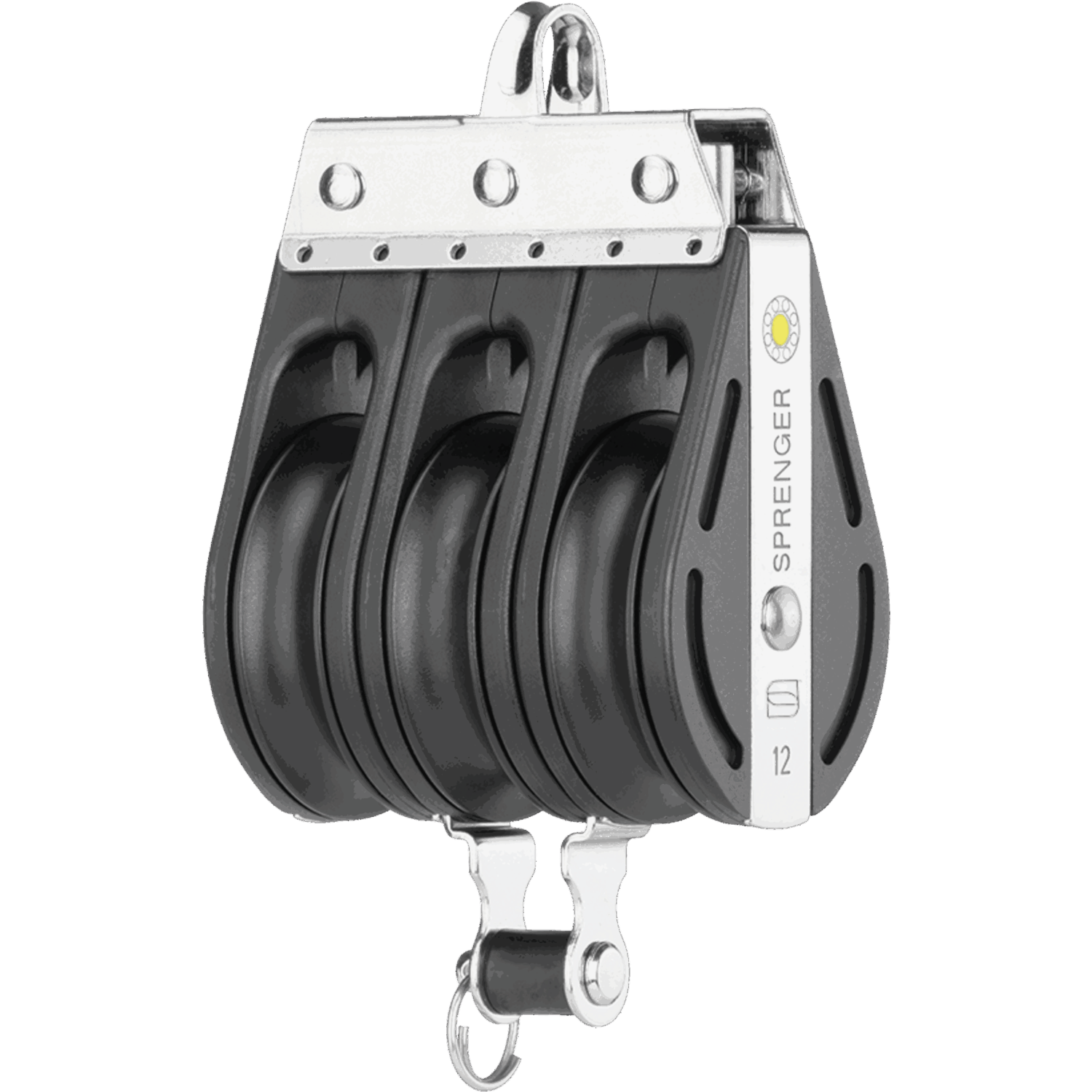

S-Block sliding bearing 12 mm - 3 sheaves, bow, becket

SKU: 3565510255

  • optimized rope guidance by specially formed cheek parts and trap of stainless steel for more security and stability

  • wobble riveting avoids sharp burrs

  • marking of the maximum rope Ø in the enhancing strap

  • cheek of glass fibre reinforced polyamide (UV-resistant)

  • with removable becket|heavy-duty sliding bearing (identification= yellow point) especially suitable for standing loads

  • optimized rope guidance by specially formed cheek parts and trap of stainless steel for more security and stability

  • wobble riveting avoids sharp burrs

  • marking of the maximum rope Ø in the enhancing strap

  • cheek of glass fibre reinforced polyamide (UV-resistant)

  • with removable becket

Product description

Versatile 12 mm block with bow and becket. The bolt with a split ring can be removed if necessary.


The sturdy stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance - a practical feature of all articles in the S-block series.


Further advantages at a glance:



  • optimal rope guidance due to curved side panels

  • side parts and pulleys made of UV-resistant, glass-fibre reinforced plastic

  • dimensionally stable, continuous stainless steel strap for added stability and safety

  • indication of the type of bearing used and maximum rope thickness on the stainless steel tab

  • no sharp ridges on the rivet head thanks to tumble riveting

  • »Made in Germany« - manufactured in our own factory in Iserlohn, North Rhine-Westphalia

  • constant quality checks - before, during and after production

  • excellent price/performance ratio

SKU
3565510255
Weight
453 g
Bearing
Plastic plain bearing
Cheek parts
Plastic
Amount of sheaves
3
Rope
12 mm Ø
360° rotatable
No
Material sheaves
Plastic
Sheave
57 x 16.2 mm
Feature
Bow, Becket (removable)
Breaking load
1,400 kg

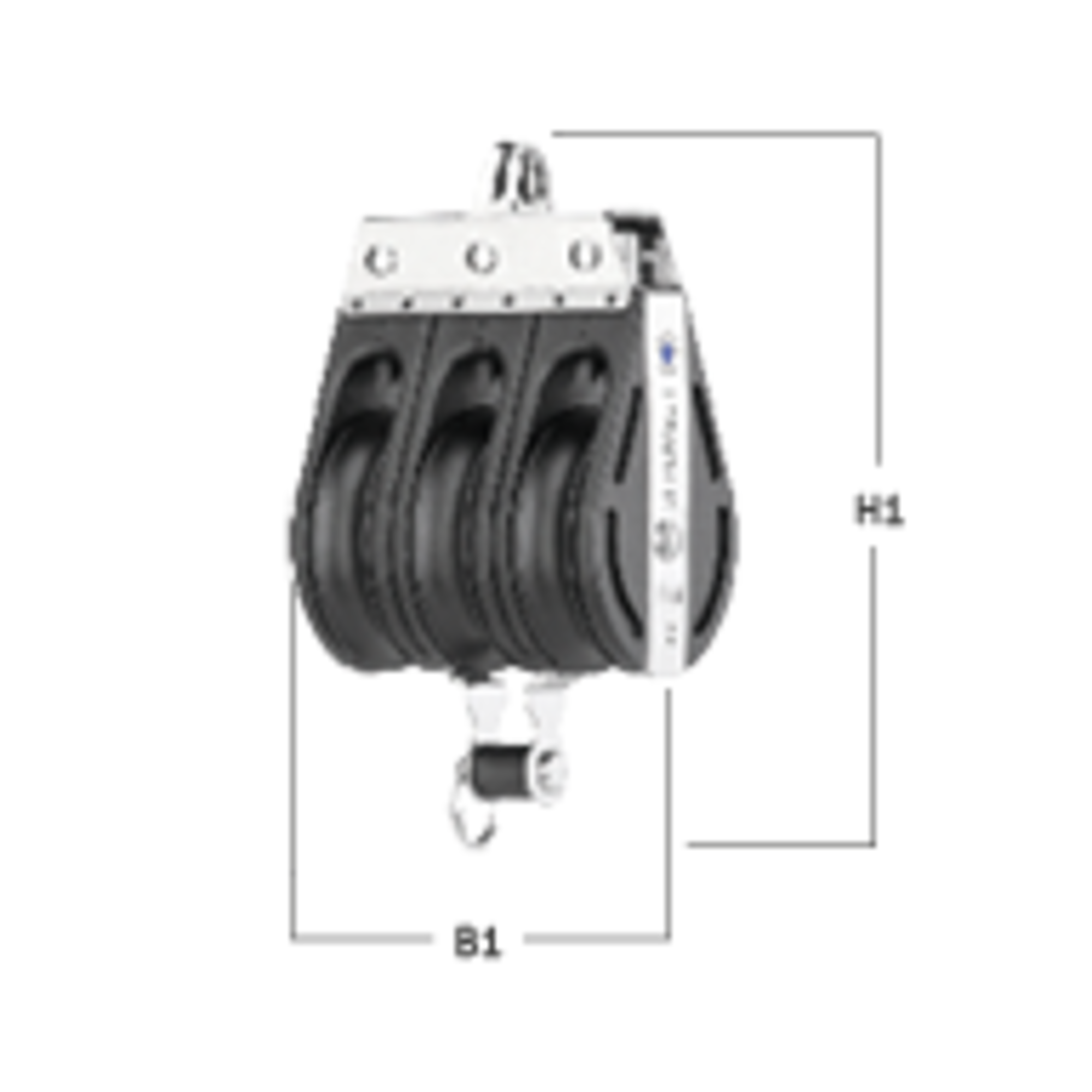

B1
78 mm
H1
140 mm
EAN
4022853206329
Self-Service-Card
Yes
Working load
560 kg
