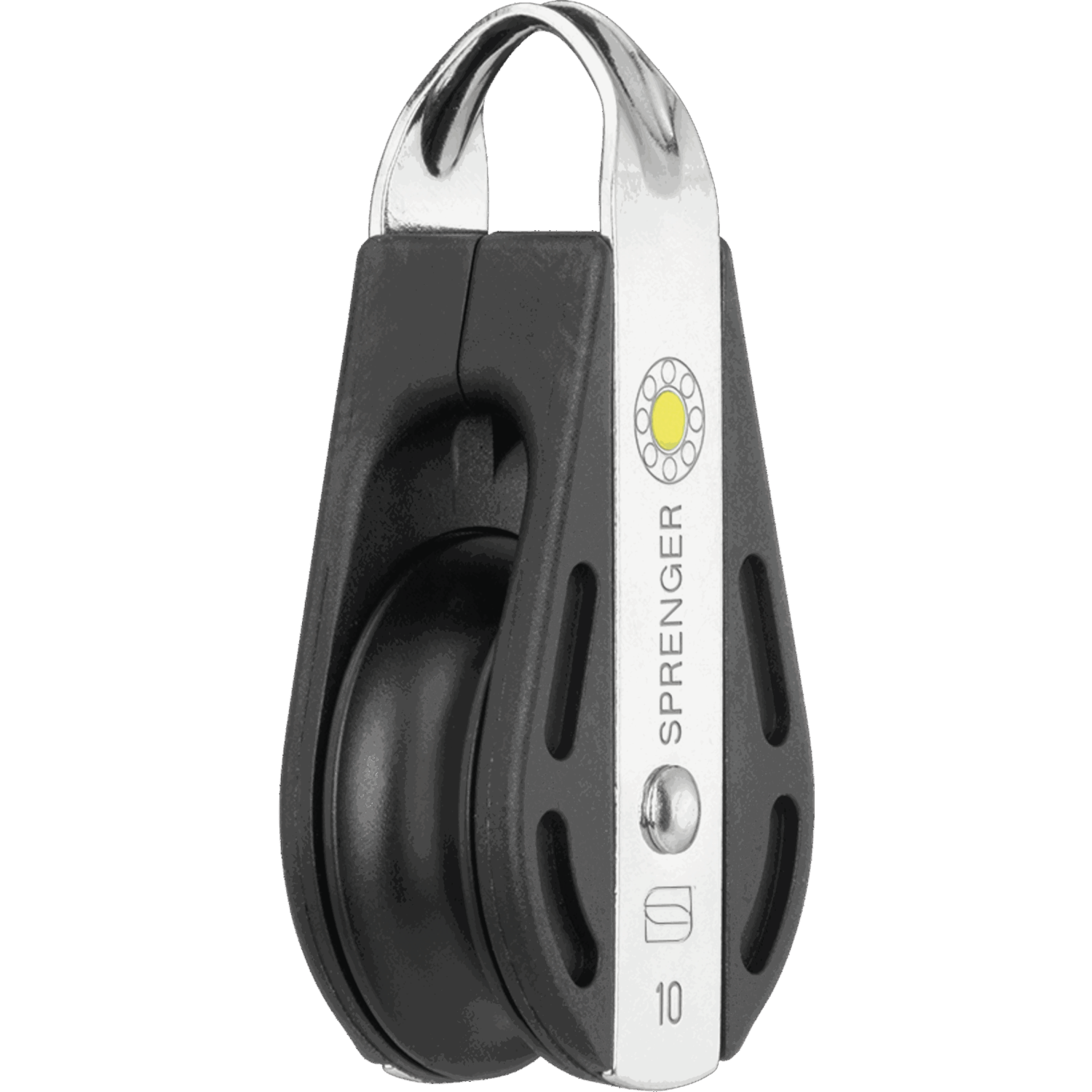

S-Block sliding bearing 10 mm - 1 sheave, through bow

SKU: 3565010155

  • optimized rope guidance by specially formed cheek parts and trap of stainless steel for more security and stability
    wobble riveting avoids sharp burrs
    marking of the maximum rope Ø in the enhancing strap
    cheek of glass fibre reinforced polyamide (UV-resistant)
    with removable becket

  • heavy-duty sliding bearing (identification= yellow point) especially suitable for standing loads
    optimized rope guidance by specially formed cheek parts and trap of stainless steel for more security and stability
    wobble riveting avoids sharp burrs
    marking of the maximum rope Ø in the enhancing strap
    cheek of glass fibre reinforced polyamide (UV-resistant)
    with removable becket

Product description

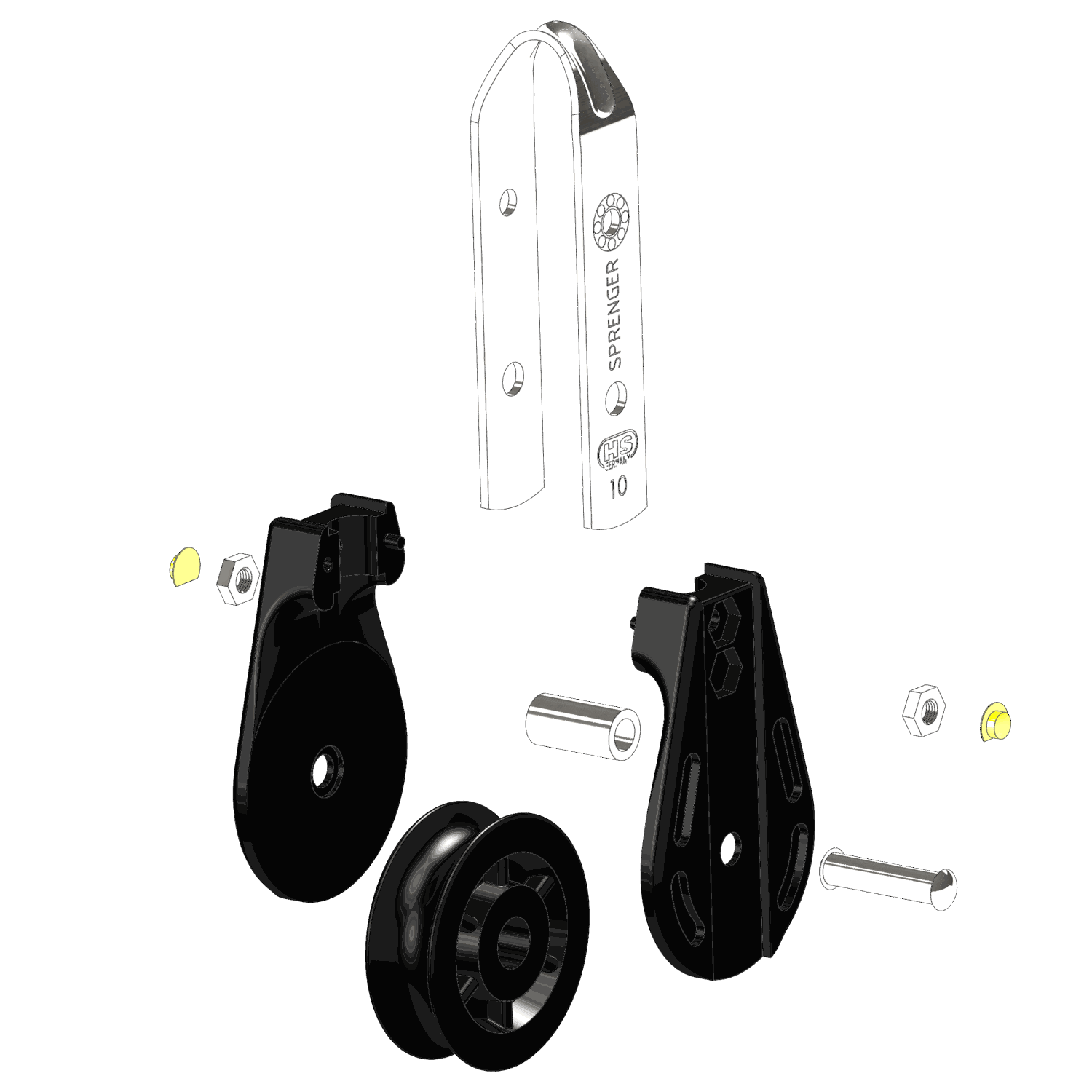

Versatile 10 mm block with continuous stainless steel bracket.
The sturdy stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance - a practical feature of all articles in the S-block series.
Further advantages at a glance:

optimal rope guidance due to curved side panels
side parts and pulley made of UV-resistant, glass-fibre reinforced plastic
dimensionally stable, continuous stainless steel strap for added stability and safety
indication of the type of bearing used and maximum rope thickness on the stainless steel tab
no sharp ridges on the rivet head thanks to tumble riveting
Made in Germany; - manufactured in our own factory in Iserlohn, North Rhine-Westphalia
constant quality checks - before, during and after production
excellent price/performance ratio
SKU
3565010155
Working load
360 kg
Weight
62 g
Bearing
Sliding bearing
Cheek parts
Plastic
Amount of sheaves
1
Rope
10 mm Ø
360° rotatable
No
Material sheaves
Plastic
Sheave
40 x 14,2 mm
Feature
Through-bow
Breaking load
900 kg

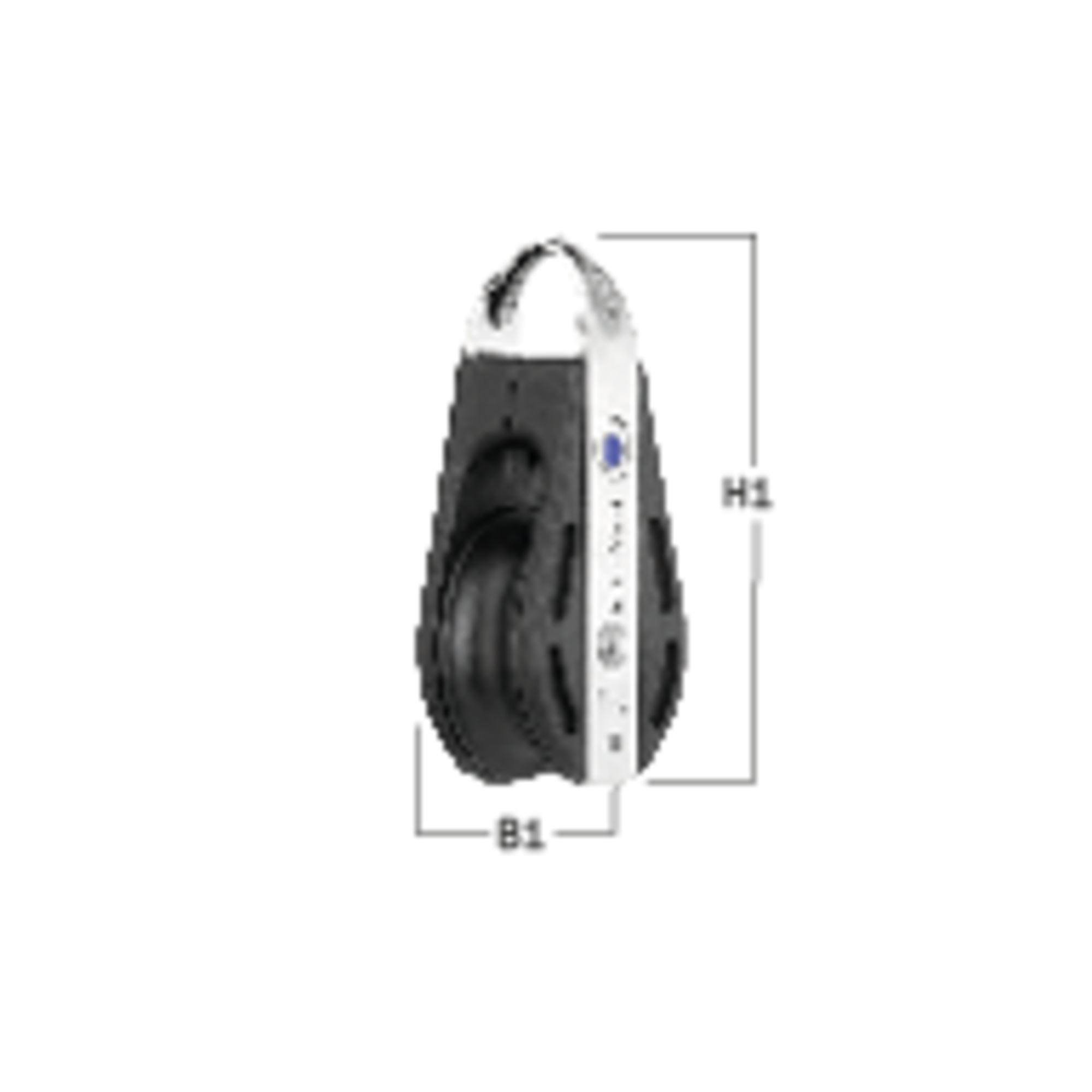

B1
21,5 mm
H1
78 mm
EAN
4022853204844
Self-Service-Card
Yes
